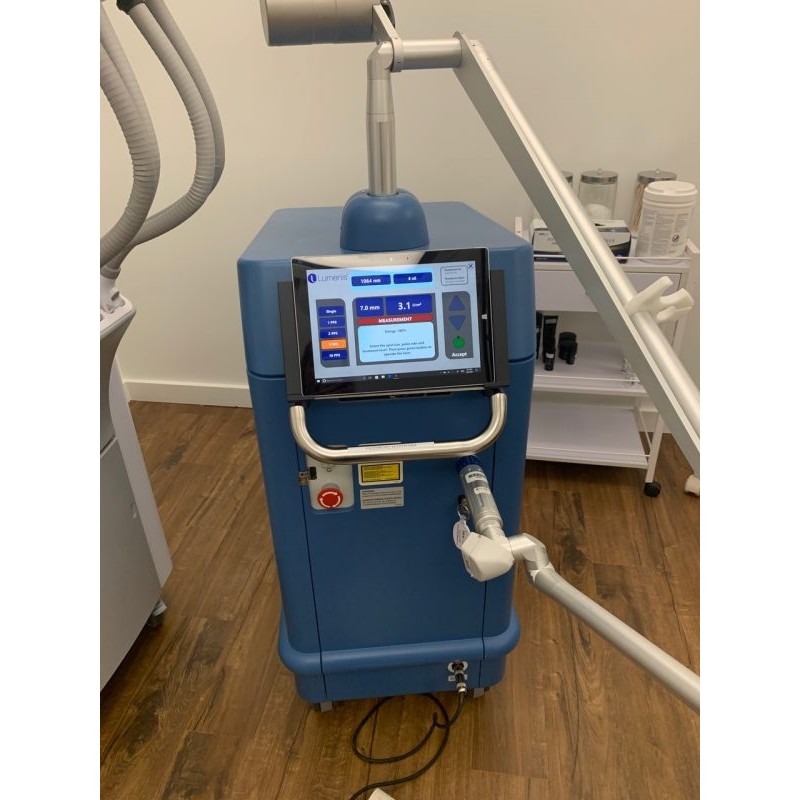

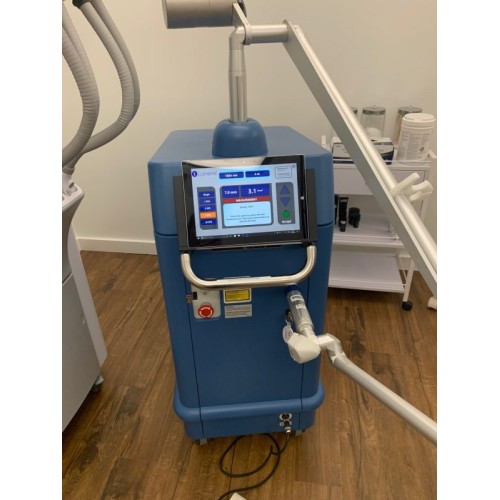

Lumenis PiQo4 Laser System

Product Specifications

• Wavelengths: 1064 nm, 650 nm, 585 nm, and 532 nm

• Maximum Pulse Energy: Up to 2000 mJ

• Spot Sizes: 15 options (2 mm – 15 mm)

• Laser Classification: Class 4

• Pulse Shape: True Single Pulse (not a pulse train)

• Repetition Rate: Up to 10 Hz for fast, efficient coverage

• User Interface: Tablet-based touchscreen (Microsoft Surface)

• PicoFractional Mode: Yes

• Electrical Requirements: 120 Volt, 10 Amp

About the PiQo4 Laser System

The Lumenis PiQo4 represents the next generation of pico and nanosecond laser technology, designed for comprehensive skin rejuvenation and multi-color tattoo removal.
With four wavelengths and an exceptionally versatile energy matrix, PiQo4 effectively targets a wide range of pigment colors and skin conditions — all while offering the largest spot size available in today’s aesthetic market for faster, more efficient treatments.

PiQo4 helps practitioners expand their service offerings by treating a variety of indications including:

• Unwanted pigmentation and lesions

• Skin irregularities and discoloration

• Fine lines and facial wrinkles

• Photoaging and sun damage

• Vascular and pigmented lesions

• General skin rejuvenation and toning

• Multi-color and dark ink tattoo removal

• Café-au-lait birthmarks and lentigines

Give your patients the confidence of clear, refreshed skin with PiQo4 and PicoFractional technology.

Technology Advantages

Pico + Nano for Dual-Impact Pigment Removal

Clinical studies show that combining picosecond and nanosecond pulses delivers superior pigment shattering compared to single-mode systems.

1. Nanosecond pulses break apart larger, deeper pigment or ink particles.

2. Picosecond pulses then target smaller, more superficial particles for thorough clearance.

This dual-action approach provides faster, more consistent results with fewer sessions and reduced risk of side effects.

High Energy Output for Faster Results

The PiQo4’s high-energy pulses convert laser light into powerful acoustic waves, fragmenting pigment and ink granules efficiently and safely.
Offering up to 10x more energy than competing devices, the PiQo4 achieves optimal results in fewer treatments.
Energy levels for 1064 nm and 532 nm wavelengths can be set in both Nano and Pico modes, enabling fully customized, dual-pulse treatments.

Deep Reach for Superior Penetration

With spot sizes ranging from 2 mm to 15 mm, the PiQo4 features the largest uniform spot size in the aesthetics industry — nearly four times that of comparable systems.
Larger spot sizes allow for deeper dermal penetration, improved pigment dispersion, and reduced surface trauma.
Clinical evidence indicates that using a large spot at low fluence minimizes blistering, scarring, and post-treatment discoloration while maintaining effective pigment clearance.

Four Wavelengths for Complete Color Coverage

Each pigment color responds best to specific wavelengths. The PiQo4’s four wavelengths — 1064 nm, 532 nm, 650 nm, and 585 nm — target the full spectrum of tattoo and pigmentation colors, from deep blacks and blues to reds and oranges.
With this system, practitioners can effectively treat up to nine of the most common tattoo colors across a wide variety of skin types.
Simply put — with PiQo4, you can erase the rainbow.

Practice Benefits

Operational Flexibility and Portability

The PiQo4 is engineered for ease of use and maximum efficiency in any clinical environment:

• Quick start-up: Ready to operate in under one minute

• Energy-efficient: Switch off between sessions without extended warm-up time

• Compact and portable: Operates on standard 120V power; easily moved between treatment rooms

• Low installation cost: No need for high-amperage outlets or specialized wiring

• Quiet operation: Low noise level ensures a calm, focused treatment environment

Why Choose Lumenis PiQo4?

The PiQo4 laser system combines power, precision, and versatility, offering aesthetic professionals a reliable solution for tattoo removal and comprehensive skin rejuvenation.
With its dual Pico + Nano technology, deep penetration, high energy output, and four treatment wavelengths, PiQo4 delivers faster, more consistent results for patients — and greater efficiency for your
