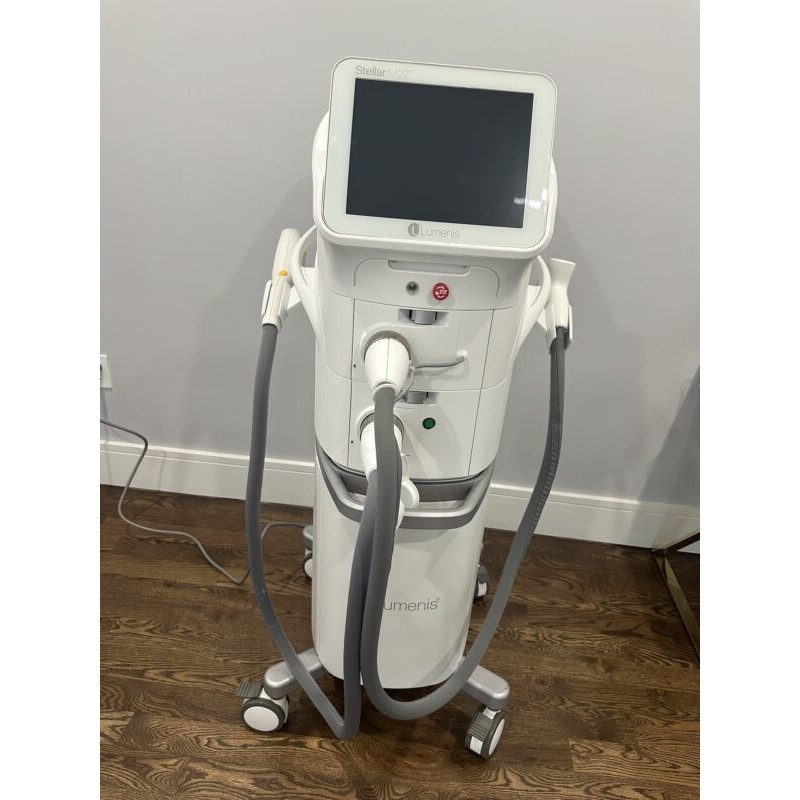

Lumenis Stellar M22

The Lumenis Stellar M22 is a modular, multi-application platform designed to treat over 30 different skin conditions and perform hair removal with precision, safety, and versatility. Trusted by physicians worldwide, the Stellar M22 combines four advanced technologies in one intelligent system—empowering your practice to deliver superior results across multiple indications.

Available Treatment Applications

• Acne & Acne Scar Treatment

• Hair Removal

• Photorejuvenation & Pigmentation Correction

• Non-Ablative Skin Resurfacing

• Vascular & Leg Vein Treatments

• Scar Revision

• Dark Tattoo Removal

• Rosacea and Skin Tone Improvement

Four Powerful Technologies in One Modular System

1. Universal IPL (Intense Pulsed Light) with Optimal Pulse Technology (OPT)

The Universal IPL handpiece features Optimal Pulse Technology (OPT) and interchangeable ExpertFilters, allowing precise treatment customization for each skin type and condition.

Key Wavelengths & Applications:

• 515 nm: Pigmented lesions (freckles, age spots), rosacea, and flushing

• 560 nm: Vascular lesions (cherry angiomas, telangiectasias)

• 590 nm: Deeper vascular lesions and darker skin types

• 615 nm: Vascular and facial redness treatments

• 640 nm / 695 nm: Leg veins, thicker vascular lesions, and hair removal for lighter skin

• 755 nm: Hair removal for darker skin tones

• Acne Filter (400–600 & 800–1200 nm): Acne clearance

• Vascular Filter (530–650 & 900–1200 nm): Vascular clearance

• Rosacea Filters (I–III and IV–V): Tailored rosacea treatment for all skin types

IPL Handpiece Specifications:

• Spectrum: 400–1200 nm

• Fluence: Up to 56 J/cm²

• Spot Size: 35×15 mm² / 15×8 mm²

• Cooling: Continuous contact cooling

2. ResurFX – True Fractional Non-Ablative Skin Resurfacing

The ResurFX handpiece is the only true non-ablative fractional laser that uses CoolScan scanning technology to deliver precise, even energy for skin resurfacing and collagen stimulation—without consumables.

Applications:

• Acne scar revision

• Non-ablative skin resurfacing

• General scar treatment and texture improvement

ResurFX Specifications:

• Wavelength: 1565 nm

• Pulse Energy: 10–70 mJ per microbeam

• Beam Density: Up to 500 microbeams/cm²

• Pattern Shapes: Line, square, circle, donut, hexagon

• Spot Size: Up to 18 mm

• Cooling: Continuous contact cooling

3. Multi-Spot Nd:YAG – Versatile Vascular Treatments

The MultiSpot Nd:YAG handpiece features Multiple Sequential Pulsing (MSP) and two interchangeable lightguides for fast, customizable vascular treatments.

Applications:

• Leg vein reduction

• Facial and vascular lesion treatment

MultiSpot Nd:YAG Specifications:

• Wavelength: 1064 nm

• Fluence: 20–225 J/cm²

• Spot Sizes: 6 mm / 2×4 mm²

• Pulse Duration: 2–20 ms

• Repetition Rate: Up to 1 Hz

4. Q-Switched Nd:YAG – Pigmentation and Tattoo Removal

The Q-Switched Nd:YAG module provides a homogeneous Top-Hat beam profile for precise, safe removal of dark tattoos and pigmented lesions.

Applications:

• Skin toning

• Pigmentation correction

• Dark tattoo removal

Q-Switched Nd:YAG Specifications:

• Wavelength: 1064 nm

• Fluence: 0.9–14 J/cm²

• Pulse Duration: 6–8 nsec

• Repetition Rate: 0.5–5.0 Hz

• Spot Sizes: 2, 2.5, 3.5, 5, 6 mm

System Specifications
